Navigating the FinOps Landscape: A Comprehensive Market Analysis

Reducing AWS Data Transfer Costs (Internet Out) with Architecture Optimization and Caching Strategies

Swapnil Shende
By Swapnil Shende
28 Jul, 2023

In the world of cloud computing, AWS has emerged as one of the most popular platforms. While AWS offers a range of services that can help you build scalable and cost-effective solutions, it's crucial to keep an eye on all aspects of cost. One of the often-overlooked factors is the cumulative cost of data transfers in AWS billing. Estimating this cost can be challenging, as different services have varying rates and stipulations. However, it is critical to reduce AWS data transfer costs for maintaining a cost-efficient solution.

This article is designed to help you navigate the intricacies of AWS Data Transfers and identify some cost-effective strategies for routing your data. By following these strategies, you can implement AWS data transfer cost optimization and ensure that you're only paying for the data you actually need.

What are AWS Data Transfers?

AWS Data Transfers refer to the movement of data either to or from AWS, or between AWS instances across different Regions or Availability Zones. In simple terms, whenever data is moved within or outside of AWS, it constitutes a data transfer. It's worth noting that inbound transfers to AWS are typically free of charge, while outbound data transfers and transfers between different Regions or Availability Zones are subject to costs. These costs are typically calculated on a per-Gigabyte basis and can vary depending on the specific service used and the regions involved. Therefore, it's essential to understand and scrutinize AWS data transfer costs while planning and implementing cloud solutions to avoid unexpected charges.

AWS Data Transfer Pricing Categories

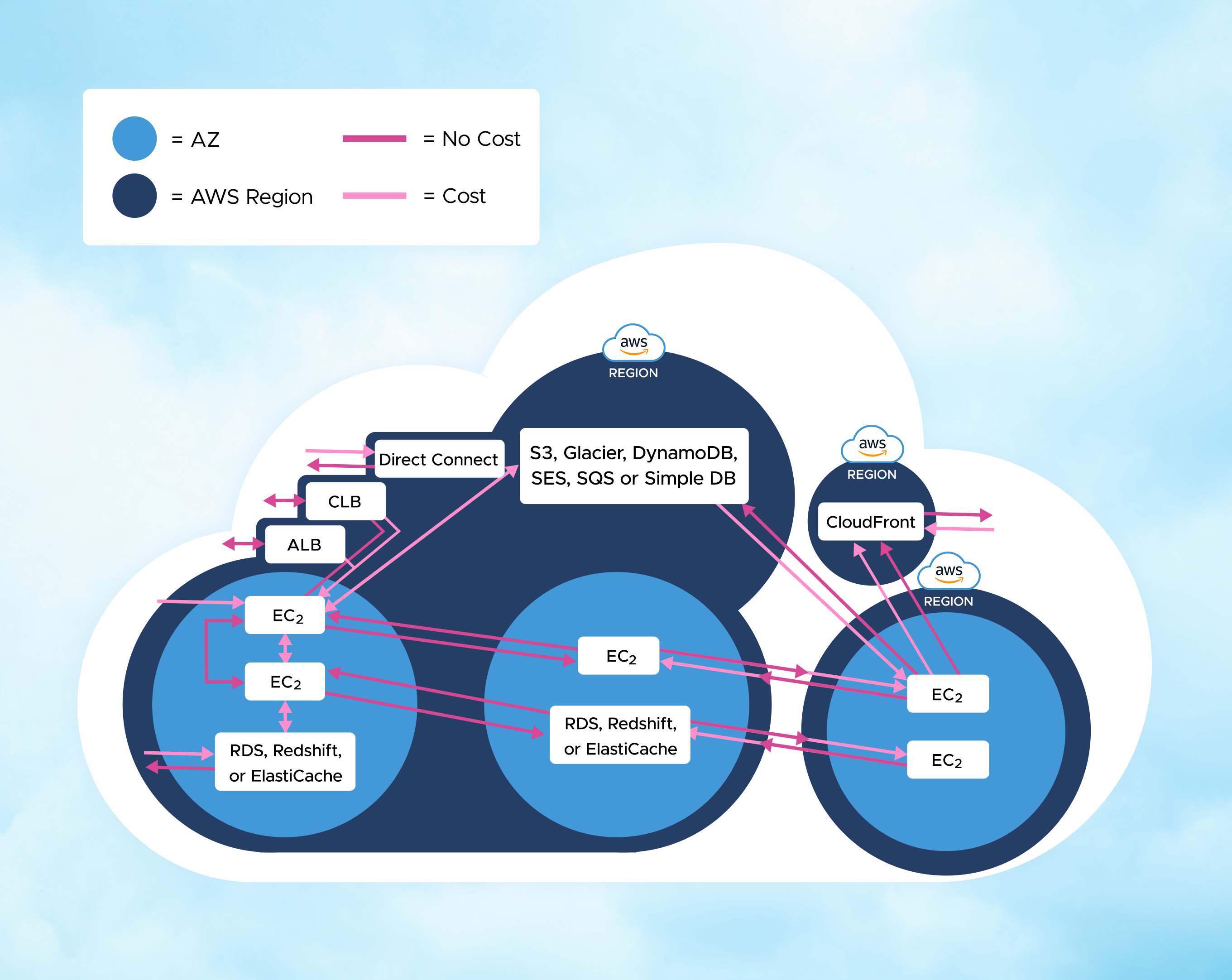

aws diagram
 Data transfers into AWS is typically free while transfers out are charged

Describing Internet Out data charges

Internet Out data charges refer to the cost incurred when data is transferred from AWS to the internet. This cost is incurred when data is accessed or downloaded from AWS services such as Amazon S3, Amazon EC2, or Amazon RDS. AWS data transfer costs vary based on the amount of data transferred, the specific region involved, and the type of service used. For instance, EC2 data transfer costs are different from AWS RDS data transfer cost. These charges are typically calculated on a per-GB basis and can add up quickly if there is a high volume of outbound data transfer.

It is important to note that AWS offers various options to minimize these charges. One strategy is to use AWS Edge Locations, which are distributed around the globe and can provide low-latency data transfer for end-users. Another strategy is to use content delivery networks (CDNs), which can help to reduce AWS data transfer costs by caching data closer to the end-users. Additionally, AWS offers tools such as Amazon CloudFront, which can help optimize data transfer and minimize costs. By monitoring and optimizing data transfer, users can reduce their internet Out data charges and achieve cost-efficient usage of AWS services.


diagram 2
Cost-Optimizing AWS services by utilizing Amazon CloudFront with ALB

CloudFront with ALB

Amazon CloudFront is a content delivery network service provided by AWS, while an Application Load Balancer (ALB) is a load balancer service provided by AWS. When using CloudFront with ALB in AWS data transfer, the CloudFront distribution acts as a front-end to the ALB, which is used to distribute incoming traffic across multiple targets, such as Amazon EC2 instances.

By leveraging CloudFront with ALB, users can benefit from reduced data transfer costs and improved performance. CloudFront caches frequently accessed content closer to the end-users, reducing the amount of data that needs to be transferred from the ALB. This reduces the load on the ALB and helps to reduce AWS data transfer costs associated with the ALB. Additionally, CloudFront provides SSL/TLS encryption, which helps to improve security and protect against network attacks.

Overall, using CloudFront with ALB in AWS data transfer can provide an efficient and cost-effective solution for distributing incoming traffic and for AWS data transfer cost optimization.

CloudFront with S3

CloudFront with S3 in AWS data transfer refers to the combination of Amazon CloudFront and Amazon S3 services. CloudFront is a content delivery network service provided by AWS, while S3 is an object storage service provided by AWS. When using CloudFront with S3 in AWS data transfer, the CloudFront distribution acts as a front-end to the S3 bucket, which is used to store the content.

By leveraging CloudFront with S3, users can reduce S3 data transfer cost and improve performance. CloudFront caches frequently accessed content closer to the end-users, reducing the amount of data that needs to be transferred from the S3 bucket. This reduces the load on the S3 bucket and helps to minimize the AWS data transfer costs associated with the S3 bucket. Additionally, CloudFront provides SSL/TLS encryption, which helps to improve security and protect against network attacks.

Overall, using CloudFront with S3 in AWS data transfer can provide an efficient and cost-effective solution for storing and delivering content, while providing an effective way to reduce the costs associated with AWS S3 services.

S3 VPC Endpoints

An S3 VPC endpoint is a managed virtual device that:

  • Can be attached to any routing table within a single VPC
  • Can be used to route traffic S3 within a single region
  • Can be used in a multi-account setting
  • Has lower network latency than accessing S3 via NAT
  • Is more secure because the network packets never leave the internal AWS network

S3 VPC Endpoints in AWS data transfer refer to a feature that allows users to access Amazon S3 from within an Amazon Virtual Private Cloud (VPC) without using the public internet. When data is transferred from an EC2 instance in a VPC to an S3 bucket, it typically goes through the internet, which can create security risks and increase data transfer costs.

By creating an S3 VPC Endpoint, users can establish a private connection between their VPC and S3, which helps to reduce S3 data transfer costs and increase the security of their data. This private connection is established using an Elastic Network Interface (ENI), which is assigned a private IP address within the VPC. When data is transferred from an EC2 instance to an S3 bucket, it is transmitted over this private connection, bypassing the public internet.

Using S3 VPC Endpoints in AWS data transfer can provide a more secure and cost-effective way to access and transfer data between EC2 instances and S3 buckets. It eliminates the need to transfer data over the internet, which helps to reduce the risk of data breaches and can save on data transfer costs. It is important to note that S3 VPC Endpoints are only available within the same AWS Region, and there may be additional charges associated with using this feature, such as for data processing or ENI usage. Data transferred through the interface endpoint is charged at $0.01/per GB (depending on Region).

Types of VPC endpoints for Amazon S3

There are two types of VPC endpoints available for accessing Amazon S3:

  • Gateway endpoints
  • Interface endpoints that make use of AWS PrivateLink.

A gateway endpoint allows you to access Amazon S3 through a gateway specified in your route table over the AWS network. Gateway endpoints are used to connect your VPC to AWS services that have a VPC endpoint service available. These services include S3, DynamoDB, and Kinesis. Gateway endpoints are used to route traffic between your VPC and the service over the AWS private network.

On the other hand, interface endpoints provide more functionality than gateway endpoints as they use private IP addresses to route requests to Amazon S3 from within your VPC, as well as on-premises or from a VPC located in another AWS Region through the use of VPC peering or AWS Transit Gateway. Interface endpoints are used to connect your VPC to AWS services that do not have a VPC endpoint service available. These services include EC2 instances, RDS instances, and Elasticsearch domains. Interface endpoints use Elastic Network Interfaces (ENIs) to create a private connection between your VPC and the service.

Using NAT Instance for some use cases

When it comes to AWS data transfer cost optimization using NAT instances, there are a few things to keep in mind. First, it's important to consider the instance type and size when selecting a NAT instance. Smaller instances may be suitable for low traffic scenarios, but larger instances may be required for high traffic workloads.

Additionally, it's important to consider the data transfer costs associated with using a NAT instance. NAT instances incur data transfer costs for traffic that goes through them, so it's important to monitor and optimize this traffic to minimize costs.

One way to reduce data transfer costs is to use a NAT Gateway instead of a NAT instance. NAT Gateways are a managed solution that can handle higher traffic volumes and have lower data transfer costs than NAT instances. However, they may not be suitable for all use cases and can be more expensive than NAT instances for lower traffic volumes.

Another way to optimize costs when using a NAT instance is to leverage spot instances. Spot instances are a cost-effective way to run instances with flexible start and stop times. By using spot instances for NAT instances, organizations can potentially save money on instance costs.

Finally, it's important to monitor usage and adjust the number of NAT instances as needed. Scaling up or down the number of NAT instances based on traffic patterns can help optimize costs and ensure that resources are being used efficiently.

Overall, by considering the instance type and size, minimizing data transfer costs, leveraging spot instances, and monitoring usage, organizations can optimize costs when using NAT instances in AWS.

For more information, you can refere following link - https://github.com/1debit/alternat

Conclusion

Optimizing AWS data transfer costs through architecture optimization and caching strategies can be achieved using various techniques such as CloudFront with ALB, CloudFront with S3, and S3 VPC Endpoints. These techniques can help reduce AWS data transfer costs by caching frequently accessed content and reducing the amount of data transferred over the internet.

By implementing CloudFront with ALB, traffic can be directed to the nearest edge location, reducing latency and the need for data transfer over long distances. Additionally, CloudFront with S3 can provide a highly available and scalable solution for hosting static content, reducing S3 data transfer costs by caching content at edge locations.

Furthermore, S3 VPC Endpoints provide a secure and cost-effective way to access S3 resources within a VPC, reducing data transfer costs by keeping traffic within the AWS network.

Overall, implementing these optimization and caching strategies can help organizations optimize their AWS infrastructure and reduce data transfer costs, while improving performance and reliability.
